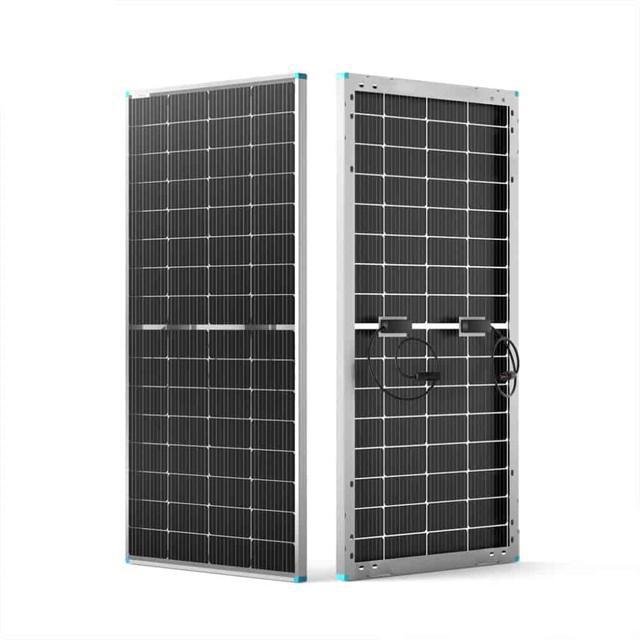

RENOGY Bifacial 220 Watt 12 Volt Monocrystalline Solar Panel

Renogy's latest innovative 220W bifacial solar panel is among the best for marine and RV applications. Thanks to its bifacial design that captures sunlight from both sides, it offers up to 30% higher energy output than traditional solar panels. Featuring premium Grade A+ monocrystalline solar cells, PERC technology, half-cut cells, ten busbars, and a bypass diode network, this monocrystalline solar panel ensures high solar cell efficiency and solar panel output. It is a great option to provide power even in the most challenging environmental conditions.

Specifications:

Max Power at STC: 220W

Open Circuit Voltage: 21.86V

Short Circuit Current: 13.41A

Optimum Operating Voltage: 18.78V

Optimum Operating Current: 12.24A

Maximum System Voltage: 1000VDC

Maximum Series Fuse Rating: 20A

Module Efficiency: 18.6%

Operating Temperature: -40°F~185°F / -40℃~85℃

Dimensions: 1547x763x30mm/60.9x30.0x1.2in

Weight: 12.7kg/28.0lbs

CERTIFICATIONS

Manufactured in a Certified ISO 9001 Facility: YES

WARRANTY

Material and workmanship warranty: 10-Year Workmanship Warranty

Performance Warranty: Over 80% Output at 25 Years

Downloads

User Manual

Warranty Information
