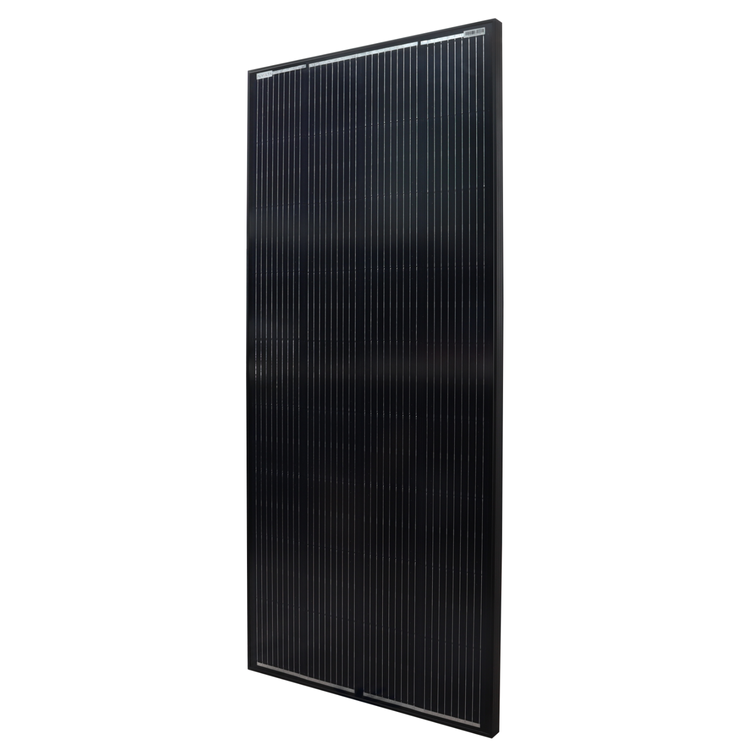

ALVOLTA ECLIPSE FULL BLACK 12V 200W MONO SOLAR PANEL

Designed to impress, the Eclipse range is powerful, affordable and stylish. Perfect for your 12V Setup, Alvolta rigid solar panels are made using high-quality monocrystalline, A-grade cells. Alvolta provides a full range of rigid monocrystalline solar panel modules ranging from 20W - to 215W. They are designed for charging 12V batteries, for example in vehicles and boats, motorhomes, caravans, camping, marine or any other systems with a 12V battery or battery bank.

Solar panels can be utilized to extend battery run time when powering multiple accessories. A number of factors that can influence this include the time of year, weather conditions, battery capacity and how long you run your appliances. It's important to oversize your solar array (where space allows) so that on a good day your solar panels will be able to fully charge your batteries and keep your loads running whilst free camping.


Features

- Aesthetic black frame

- Aesthetic black cells

- IP65 sealed, weatherproof, multi-functional junction box gives a high level of safety

- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems

- A-grade cells

- Up to 20.6% module efficiency

- Low voltage-temperature coefficient enhances high-temperature operation

- 5 Year product warranty on materials

- Pre-wired 900mm cable with MC4 style connectors


Specifications:


Model SCB12200W

Cells: A Grade

Cell Type: Monocrystalline

Rated Power (Watts): 200

Open Circuit Voltage (Volts): 23.3

Maximum Power Voltage (Volts): 19.8

Short Circuit Current (Amps): 10.91

Maximum Power Current (Amps): 10.10

Temp Range: -40 to +85°C

Maximum System Voltage (Volts): 1000 VDC

Power Tolerance: ±3%

Nominal DC Voltage: 12

Size (mm): 1500 x 680 x 35

Weight: 13kg

Warranty: 5 Year Product Warranty
